Auto Assembling Machinery with Spot Welding Machine for H Beam

Basic Info.

Model NO.	Z20
Assembling Speed	0.5-6 M/Min
Suitable H Beam Length	4m-15m
Flange Assembly Height	200-800mm
Clamping Way of Assembly Machine	Web and Flange Automatic Clamping
Main Drive Mode	AC Motor Cycloid Reducer
Assembly Mode	Hydraulic Assembly
Optional	H Beam Welding, H Beam Straightening
Web Assembly Thickness	32 mm
Working Area	H Beam Fabrication Machines
Flange Assembly Thickness	40mm
Web Assembly Height	200-2000mm
Assembly for	Beam Flange and Web Assembling and Auto Welding
Converter	AC Frequency
Function	Beam Assembling Machine
Transport Package	20gp Container
Trademark	Lemar
Origin	Jiangsu, China
HS Code	8468800000

Product Description

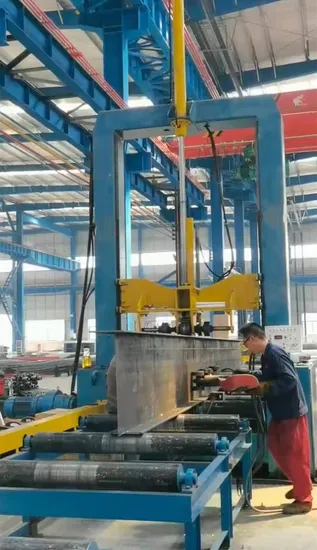

H-beam automatic assembly machine more than doubles the work efficiency than manual operation.Automatic clamping, centering the web and flange, aligning and welding the H Beam steel structure together, with arc ignition device to ensure welding quality and precision.The main drive is controlled by imported AC variable frequency speed controller, which is stable and reliable.We have Z15/Z18/Z20/Z25/Z30 different series of H beam automatic assembly and welding machine according to clients' different requirements.

Spericiation:

Model	Web thickness	Web height	Flange thickness	Flange height	Beam length	Power	Assembly speed
Z15	32mm	200-1500mm	40mm	200-800mm	4000-15000mm	14kw	0.5-6m/min
Z18	32mm	200-1800mm	40mm	200-800mm	4000-15000mm	14kw	0.5-6m/min
Z20	32mm	200-2000mm	40mm	200-800mm	4000-15000mm	14kw	0.5-6m/min
Z25	32mm	200-2000mm	40mm	200-800mm	4000-15000mm	14kw	0.5-6m/min
Z30	32mm	200-2000mm	40mm	200-800mm	4000-15000mm	14kw	0.5-6m/min

Note:Send us your beam size,we will choose suitable machine for you customize.
Features of machine:
1.Applicable workpiece specifications:Web height: 200-2000mm;Flange width:200-800mm;Length: 4000-15000mm(Can be customized according to your H beam size)2.Automatic clamping of web and flange mode3.Manual Gas shield welding or Automatic welding can be choosed by user.4.Hydraulic system of H beam I beam automatic assembly machine with pressure keep and time delya system.5.Automatic centering is accurate, no need to adjust every time (fine adjustment without eccentricity).There is an automatic hydraulic cage that can be raised and lowered during assembly to ensure web and flange alignment. There are 4 pairs of guide rails on the left and right of the upper beam to ensure stability.6.Main drive control: AC motor + cycloid reducer;7.Adopt imported inverter technology to center the AC inverter web and flange to realize automatic work;8.Users can choose CO2 gas shielded welding or manual welding.
