Datang Dz18 H

Basic Info.

Model NO.	DZ18
HS Code	84688000
Production Capacity	50 Sets Per Month

Product Description

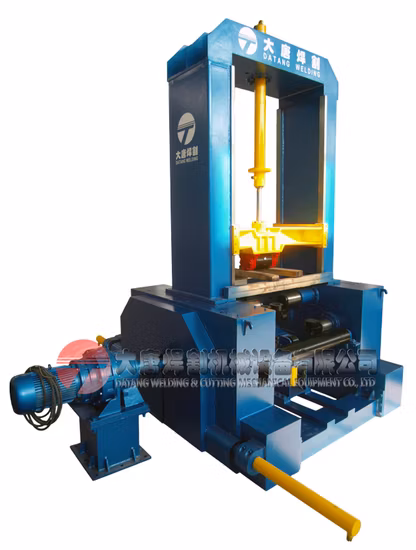

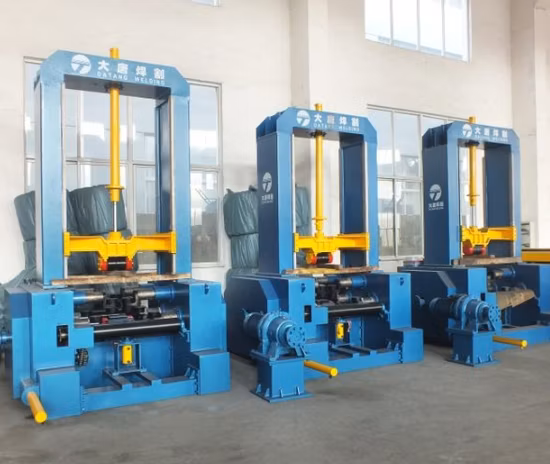

H-beam Auto-assembling Machine
This machine's process including clamping and alignment of web and flange, automatic tack-welding is controlled with PLC. Main machine is driven by A.C.inverter, stable and reliable. Upper press-beam is guided thru left and right four rails, ensuring steady clamping of long time use.

Models	DZ15	DZ18	DZ20	DZ25
Applicable height of H-beam web(mm)	200~1500	200~1800	200~2000	200~2500
Applicable thickness of H-beam web(mm	6~32
Applicable length of H-beam web(mm)	4000~15000
Applicable width of H-beam flange(mm)	200~800
Applicable thickness of H-beam flange(mm)	6~40
Applicable length of H-beam flange(mm)	4000~15000
Assembling speed(m/min)	0.5-6
Power(Kw)	14(two motor is excluded)
