Horizontal Tandem Saw Welding Assembly Welding Steel Structure H Beam Production Line

Basic Info.

Model NO.	WH
Production Scope	Product Line
Flange Plate Width	150-500mm
Warranty	1 Year
Flange Plate Thickness	5-20mm
Web Plate Height	300-1500mm
Web Plate Thickness	3-12mm
Function	Beam Making
Transport Package	Wooden Case
Trademark	Zhouxiang
Origin	China
HS Code	8468800000
Production Capacity	10sets/Month

Product Description

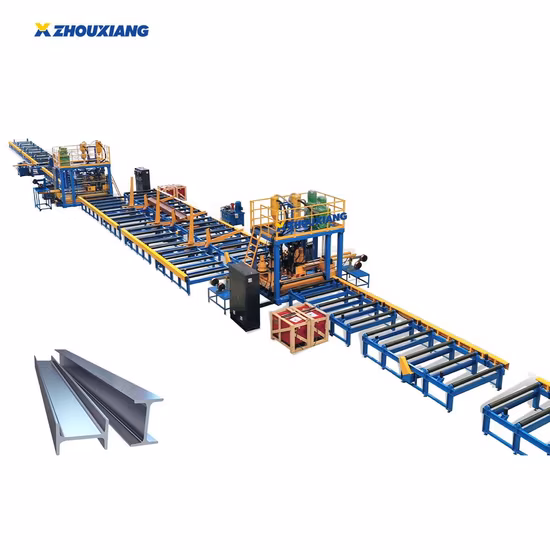

H-beam steel horizontal production line is a special welding production line that directly assembles steel plate into H type steel. Compared with the ordinary H-beam steel vertical welding production line (T type first,H type after), it has the characteristics of high production efficiency and low welding deformation, and is especially suitable for the welding production of light type. The production line consists of assembling machine, front welding machine, overturning machine, end welding machine and input/output conveyor , can achieve H type steel group, welding, turning, transportation and other work. H-beam steel horizontal production line can improve the working efficiency and reduce the operation cost, the efficiency is 1.5 times that of the ordinary steel and the security is better, it also can adapt to various environments.

Web plate height	Web plate thickness	Welding sped	Flange plate width	Flange plate thickness	Suitable work piece length	Work piece max weight	Cross section drift angle
300-1500mm	3-12mm	0.3-1.9m/min	150-500mm	5-20mm	4000-15000mm	4000kg	≤8°

Advantages:
1.When assemble, just needed to do spot welding of H beam end, then can go into the welding process, welding machine will re-position the three plate, thus increase assemble speed.2.Work piece is put horizontally (web is horizontal and flange is vertical), and beam will move during welding, and can weld two seam at the same time to reduce deformation caused by welding heat.3.A variety of welding methods,submerged arc welding and gas shielded welding are available.4.Machine is equipped with Lincoln DC-1000 welders, which used single arc double wire welding mode, wire diameter is 1.6mm, and welding speed can reach 1200mm/min, the welding seams are well formed and look beautiful.5.It is suitable to weld variable cross section H beam ≤8°.6.This line is more automatic then traditional ones, so can reduce the labor intensity, and reduce operator, only need 4~5 operators for normalproduction..

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.
We have high sincerity to do business with customers all over the world and establish good friendships.
